Auto Alignment PCB Outer Layer UV Exposure machine

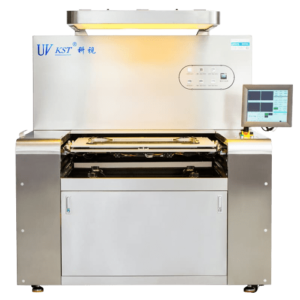

Auto Alignment PCB Inner Layer Exposure Machine
  • Acceptable for both Inner and Outer Layer
  • Dry film, Wet film is acceptable.
  • LED light source with three years warranty
  • High resolution:2mil.
  • Stable Quality and performance
Request A Quote

Caresolutions on different kinds UV exposure machine
& Direct Imaging for PCB Outer Layer production

Manul Work

Auto Alignment

Full Automatic

Direct Imaging

Apply on different material: FR1, FR4,  Aluminum Base and Dry film, Wet film

PCB White Ink Solder Mask

UV Exposure Machine Improve Your PCB Production Accurancy

KST-E7070-XL
Manual UV LED exposure machine
  • Exposure size:700*700~2000*700mm
  • Light Source: LED Light Instant ON/OFF, Reduce Engergy Costs. (Lift time better than Mercury UV-LAMP)
  • Exposure mode: Double sided
  • Process: Both dry film /Wet film
  • Resolution:2mil/50um
  • Working table: Double drawers
  • Optical Glass: Mylar to Glass
Download Catalog
KST-SA6457-WX

Semi-Auto Outer Layer UV exposure machine

  • Exposure size: 10''×12''~21''×24''(Standard)/24''×28''(Increase)
  • LED Light Instant ON/OFF, Reduce Engergy Costs. (Lift time better than Mercury UV-LAMP)
  • Exposure mode: Double sided
  • Process: Both dry film /Wet film
  • High Resolution Line/Space 50μm/2mil
  • Working table: Double drawers
  • Alignment Precision 3σ≤ 20μm
Download Catalog
KST-AEM6457-WX

Full Auto Outer Layer UV exposure machine

Full automatic PCB Solder Mask Exposure Machine
  • Exposure size: 10''×12''~21''×24''(Standard)/24''×28''(Increase)
  • LED Light Instant ON/OFF, Reduce Engergy Costs. (Lift time better than Mercury UV-LAMP)
  • Production Capacity: 4~4.5 pcs/minute
  • Process: Both dry film /Wet film
  • High Resolution Line/Space 50μm/2mil
  • Working table: Double drawers
  • Alignment Precision 3σ≤ 20μm
Download Catalog

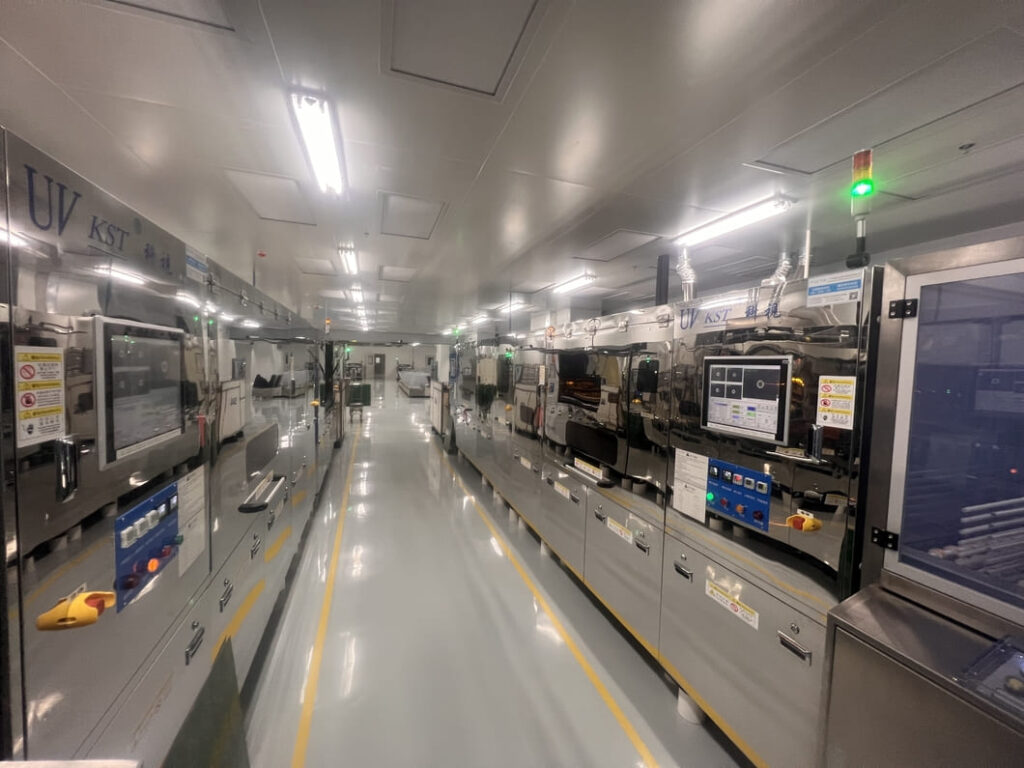

KST machines widely used in Customer's Factory

KST Customer factory

Demo Videos for Auto Alignment UV Exposure machine

KST Machines are widely used all around the world. Which is stable and energy Saving, with lifelong Service, easy operate, and long service life.

PCB Resolution(Line and Space)Reach 50um/2mil

Line Resolution/2mil
Line Width/Space:2mil
Solder Mask Opening/3mil
Solder Mask Bridge/3mil

Request A Free Quote

We’d like to work with you

Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right valve you want.

KST Optical develops industry-leading UV exposure Machine and PCB Direct Imaging System and services that enable innovation throughout the PCB industry. We provide advanced process control and process-enabling solutions for manufacturing printed circuit boards.

About

  • Stories
  • Community
  • Blog
  • Careers
  • Brand Assets

Get Services from our most experienced consultants

  • Awareness of Your Needs
  • Recommend machines for your reference and comparison
  • Offer Reasonable Quotation
  • Life Time After-Sales Support

Note: Your email information will be kept strictly confidential.

Auto Alignment PCB Outer Layer Exposure Machine

Model Exposure Size Exposure Mode Exposure for Line/Space
KST-SA6254-WX 623*546 Auto Alignment Double sided Exposed at same time Dry film Wet film 50/50um
KST-SA7262-WX 723*622 Auto Alignment Double sided Exposed at same time Dry film Wet film 50/50um
KST-AEM6457-WX 623*546 Full automatic Dry film Wet film 50/50um
KST-AEM7262-WX 723*622 Full Automatic Dry film Wet film 50/50um

1) Simple structure in linear type ,easy in installation and maintation.

2) Automatic energy calibration and compensation, uniformity>85%, some above>90%

3) LED Technology, power savings, high efficiency, cost effective.

4) Built in temperature monitor module, alarming when LED over temperature.

5) High precision constant current driving power supply design, reducing the current impact of LED, greatly prolongs the LED service life

Auto Alignment Solder Mask UV Exposure Machine

Model Exposure Size Exposure Mode Exposure for Solder Dam
KST-SA6254-FH 623*546 Auto Alignment Solder Mask all colors 75/75um
KST-SA7262-FH 723*622 Auto Alignment Solder Mask all colors 75/75um
KST-SA6254-TFH 623*546 Auto Alignment Double sided Exposed at same time Solder Mask all colors 75/75um
KST-SA7262-TFH 723*622 Auto Alignment Double sided Exposed at same time Solder Mask all colors 75/75um

Features:

  1. Power module design slow current rise mode, ensure LED life.
  2. Using communication mode compensated monitoring LED brightness quality.
  3. Built-in temperature module that can monitor LED board temperature any time.
  4. LED light source modular designs that easy maintenance and replacement.
  5. Double sided machine with 8-axis independent 8-CCD auto alignment, alignment accuracy≦10μm.
  6. Automatic energy calibration and compensation, uniformity can automatic calibration to above 90%.
  7. Through multi-wavelength mixed achieves the best resolution, undercut ≦0.7mil(on copper surface).
  8. Production speed 2.5~3 pcs/min.
